The commutator can be defined as is an electrical rotating switch in a particular type of generators as well as motors. This is mainly used to overturn the direction of current among the external circuit & rotor. It comprises a cylinder with numerous metal contact segments lying on the revolving armature of the machine. The brushes or electrical contacts are made with a carbon press material next to the commutator, designing sliding contact by consecutive segments of the commutator while it revolves. The armature windings are allied to the segments of the commutator.

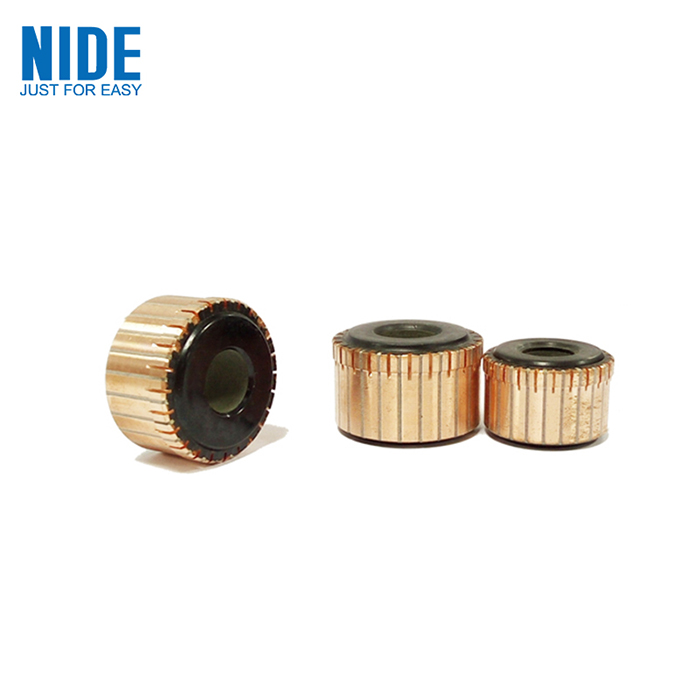

Име на продукта: | Комутатор на DC моторна част |
ОТ | 37.5 |
документ за самоличност | f13 |
Обща височина | 26 |
Дължина на сегмента | 23 |
Диаметър на куката/щранга | 38.5 |
бар номер | 32 |
Част No. |
O.D (D) |
документ за самоличност (d) |
Общо O D (D1) |
Лента № (N) |
Дължина на пръта (L1) |
Обща дължина (L) |
JZQE-RS12-148 |
63 |
13.2 |
73 |
24 |
16 |
26.5 |
JZQE-RS12-148B |
63 |
20 |
73 |
24 |
16 |
26.5 |
JZQE-RS12-148C |
63 |
13.2 |
73 |
24 |
16 |
26.5 |
JZQE-RS12-149 |
40 |
15 |
43 |
43 |
10 |
18.2 |
JZQE-RS31-150 |
44 |
12.08 |
23 |
10 |
12.5 |
|
JZQE-RS31-150B |
44 |
12.35 |
23 |
10 |
12.5 |
|
JZQE-RS31-150C |
44 |
12.06 |
23 |
10 |
12.5 |
|
JZQE-RS31-150D |
44.2 |
12.08 |
23 |
10 |
12.5 |
|
JZQE-RS31-150E |
44 |
12 |
23 |
10 |
12.5 |
|
JZQE-RS12-151 |
47.6 |
13.2 |
57 |
16 |
14 |
24.5 |
JZQE-RS12-151B |
47.6 |
13.2 |
57 |
16 |
14 |
22 |
JZQE-RS12-151C |
47.6 |
13 |
57 |
16 |
14 |
24.5 |
JZQE-RS12-151D |
47.6 |
13 |
57 |
16 |
14 |
22 |
JZQE-RS12-151E |
47.6 |
13.4 |
57 |
16 |
14 |
24.5 |
JZQE-RS31-169 |
38 |
12.08 |
26 |
10 |
14.3 |
|
JZQE-RS12-193 |
74 |
33 |
85 |
81 |
12 |
12 |
JZQE-RS12-247 |
19.5 |
4 |
7 |
3 |
5.5 |
|
JZQE-RS12-326 |
49 |
13.2 |
16 |
14 |
15 |
|
JZQE-RS32-348 |
58 |
24.1 |
25 |
|||
JZQE-RS32-464 |
20.5 |
5 |
25 |
8 |
5.7 |
8.5 |
JZQE-RS32-464B |
20.5 |
5 |
24.7 |
8 |
5.7 |
8.5 |
JZQE-RS32-464C |
20.5 |
5 |
24.7 |
8 |
5.7 |
8.5 |
JZQE-RS32-464D |
20.5 |
5 |
25 |
8 |
5.7 |
8.5 |
JZQE-RS32-464E |
20.5 |
5 |
25 |
8 |
5.7 |
8.5 |
JZQE-RS12-480 |
78 |
23 |
25 |
13 |
23 |
|
JZQE-RS32-508 |
20.5 |
3.175 |
25 |
8 |
4.2 |
8.5 |
JZQE-RS31-525 |
44.2 |
12.08 |
23 |
10 |
13 |
|
JZQE-RS31-525B |
44.2 |
12.35 |
23 |
10 |
13 |
|
JZQE-RS31-525C |
44.2 |
12 |
23 |
10 |
13 |
|
JZQE-RS32-555 |
20.5 |
3 |
24.7 |
8 |
5.7 |
8.6 |
JZQE-RS12-593 |
71.5 |
13.2 |
64 |
24 |
28 |
32.5 |
JZQE-RS11-608 |
52.5 |
16 |
19 |
6.5 |
16 |
|
JZQE-RS11-608B |
52.5 |
16 |
19 |
6.5 |
16 |
|
JZQE-RS32-618 |
23 |
4 |
28.5 |
10 |
6.5 |
10 |
JZQE-RS32-618B |
22.5 |
4 |
28 |
10 |
6.5 |
10 |
JZQE-RS32-651 |
47.6 |
13 |
56.5 |
16 |
12.5 |
18.5 |
JZQE-RS32-664 |
48 |
13.4 |
57.5 |
16 |
12.5 |
24.5 |
JZQE-RS12-688 |
59 |
24.1 |
58 |
25 |
34.9 |
22 |
JZQE-RS12-689 |
59 |
24.1 |
58 |
25 |
34.9 |
19.5 |
JZQE-RS32-717 |
47.6 |
13.3 |
56.5 |
16 |
12 |
24.77 |
JZQE-RS32-739 |
44.2 |
13.8 |
23 |
10 |
13 |
|
JZQA-RS12-752 |
31 |
11.5 |
40 |
21 |
25.5 |
28 |
JZQB-RS31-792 |
61 |
13.5 |
29 |
9 |
16 |
|
JZQE-RS31-796 |
44.2 |
9 |
23 |
10 |
12.5 |
|
JZQE-RS12-846 |
48.5 |
10.2 |
48.5 |
25 |
6 |
11 |
JZQE-RS32-854 |
47.6 |
13.2 |
56.6 |
16 |
7 |
22 |
JZQE-RS12-907 |
48.5 |
10.2 |
48.5 |
25 |
6 |
10 |
JZQE-RS12-926 |
64 |
20 |
60 |
31 |
5 |
17 |
Този комутатор се използва в двигатели с променлив ток, монофазни двигатели, автомобилни двигатели, стартерни двигатели за мотоциклети, двигатели за електрически инструменти и микро специални двигатели.
Комутатор с един двигател за AC двигател
